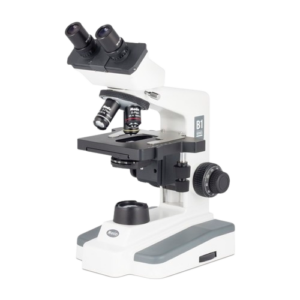

Motic B1 Elite LED

  • Observation Tube: Binocular, sliding type
  • Interpupillary distance: 55-75mm
  • Diopter adjustment: On both tubes: +/- 5 diopter
  • Inclination: 45° inclined, 360º rotating
  • Eyepiece: WF10X/18 mm
  • Semi-Planachromatic Objectives: 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25
  • Stage: Built-in low position coaxial rackless mechanical stage with sample holder
  • Stage size: 140 x 135 mm
  • Upper limit stop: Preset and adjustable
  • Focusable 1.25 N.A. Abbe condenser with iris diaphragm
  • Fine focus precision: 2 μm minimum increment
  • 3 W LED illumination with intensity control
  • Dimensions (cm): W 19 x D 24.5 x H 38
  • Weight: 6.8 kg
