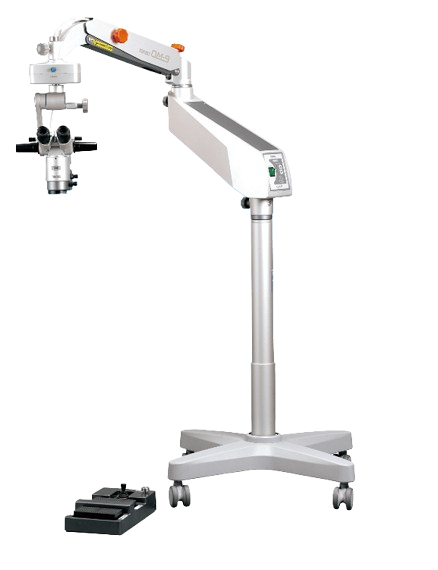

Takagi OM-9
The Takagi OM-9 middle-level microscope is the most sold and widely trusted ophthalmic surgical microscope on the market, combining cutting-edge optical performance, versatile functions, and exceptional operational reliability.
This highly popular model is designed to meet the demands of even the most rigorous eye surgery procedures, and it is ideally suited for anterior segment and cataract surgery, retinal vitrectomy, as well as other retinal procedures with compatible accessories.
Key Features:
- Top-Tier Optics: Delivers an exceptionally sharp, high-contrast, three-dimensional view with outstanding depth of field.
- Advanced Red Reflex and LED Illumination: An efficient, long-lasting direct LED light source and a new red-reflex system produce precise illumination while protecting the patient’s eyes.
- Versatile Applications: Ideally suited for anterior segment and cataract surgery, as well as retinal procedures with compatible accessories.
- Superior Ergonomics: Adjustable binocular observation tubes, sensitive X-Y movement, and flexible focusing ensure the surgeon maintains a perfect working posture even during lengthy operations.
- Clean and Easy-to-Maintain Design: Internally integrated cables make cleaning easier and give the device a streamlined profile.
Technical Data:
- LED light source time of usage over 40 000 h
- High-quality wide-field optic
- Electronic stepless magnification 4.1x – 20.4x
- Electronically driven X-Y motor.
- Electronical focus adjustment (direction Z)
- F = 200 mm
- Binoculars with tilting possibilities
- lluminated area 60 mm
- Filters: Heat-Absorbing, Blue correction, Blue Cut, Retina shield
- Maximum reach 1045 mm
- Overall weight 90.5 kg
- Several accessories available
Selection of three configurations according to need
The OM-9 is available in three different specifications based on the combination of coupling, microscope, and binocular tube, allowing the surgeon to choose the cofiguration that best suits the needs.

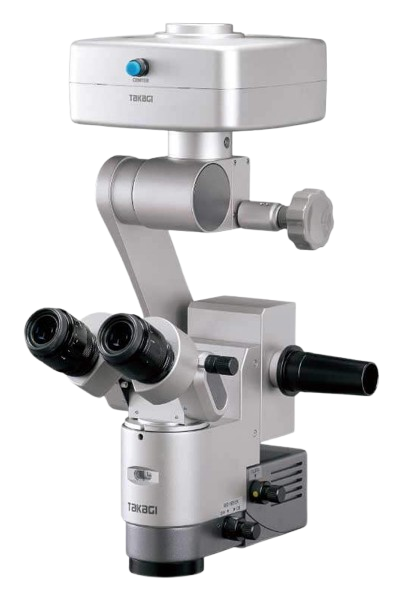

XZ configuration (Motorized zoom microscope specification)
- Coupling: X-Y coupling
- Microscope: Motorized zoom magnification (zoom ration 1:5)
- Binocular tube: Tiltable

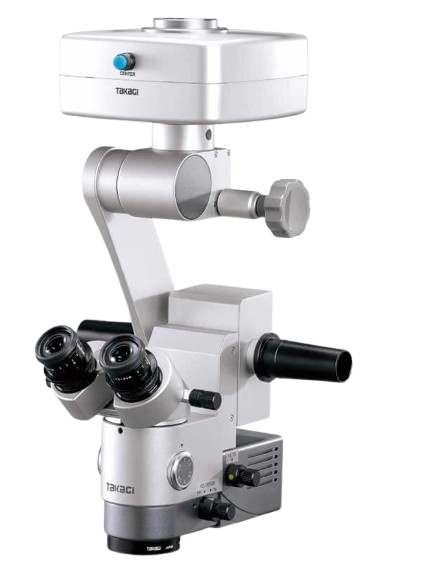

XE configuration (Motorized 5-step magnification specification)
- Coupling: X-Y coupling
- Microscope: 5-step motorized magnification
- Binocular tube: Fixed at 45 degrees angle

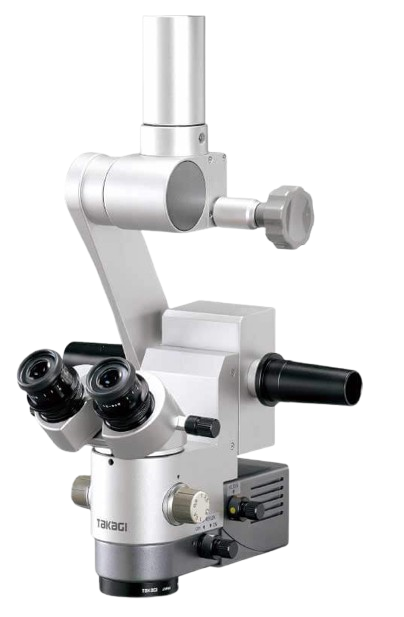

SM configuration (Manual 5-step magnification specification)
- Coupling: Straight coupling
- Microscope: 5-step manual magnification
- Binocular tube: Fixed at 45 degrees angle
